LoRaWAN

IoT Sensor

IoT Sensor

深知科技Deepsenxe的LoRaWAN無線技術

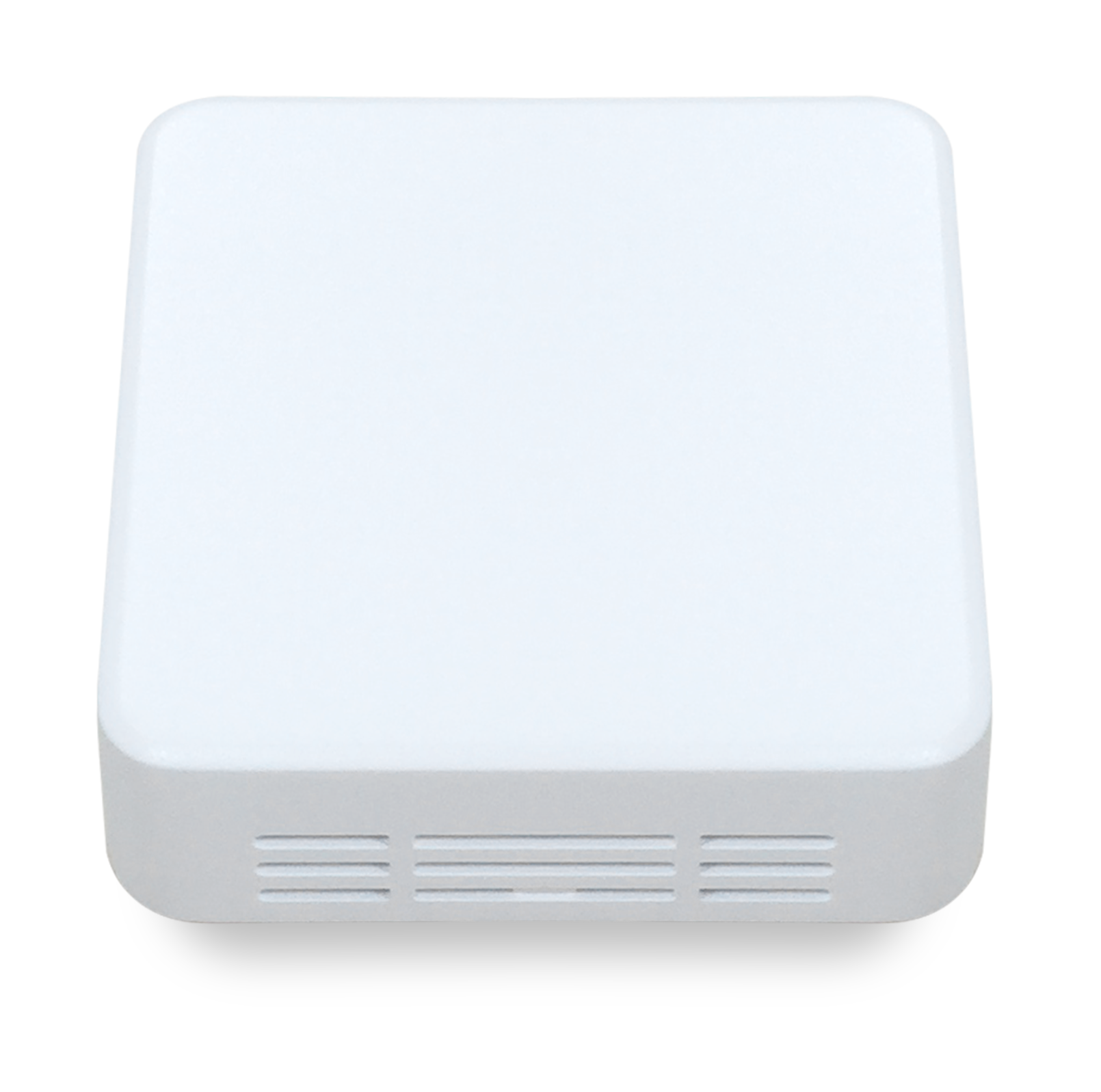

LWX 01

HUMIDITY & TEMPERATURE SENSOR

LWX-01 is a perfect combination of LoRaWAN wireless technology and environmental monitoring like temperature and humidity. LoRaWAN allows LWX-01 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. With 1 battery, LWX-01 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

5 years plus sustainability

Connectivity

LoRaWAN EU868, US915, AS923

RF Sensitivity

-135.5 dBm

RF power

+14 dBm

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

2 x 14500 3.6 V

Battery lifetime

5 years (depending on Measurement interval)

Size

76 x 75 x 27 mm

Download LWX 01

LWX 01

HUMIDITY & TEMPERATURE SENSOR

LWX-01 is a perfect combination of LoRaWAN wireless technology and environmental monitoring like temperature and humidity. LoRaWAN allows LWX-01 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. With 1 battery, LWX-01 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

5 years plus sustainability

Download LWX 01
深知科技Deepsenxe的LoRaWAN無線技術

LWX 01 EXT

HUMIDITY & TEMPERATURE SENSOR

LWX-01-EXT is a perfect combination of LoRaWAN wireless technology and environmental monitoring like temperature and humidity. LoRaWAN allows LWX-01-EXT ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. With 2 battery, LWX-01-EXT can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

5 years plus sustainability

Connectivity

LoRaWAN EU868, US915, AS923

RF Sensitivity

-135.5 dBm

RF power

+14 dBm

Gain

2.61 dBi

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

2 x 14500 3.6 V

Battery lifetime

5 years (depending on Measurement interval)

Size

76 x 75 x 27 mm

Download LWX 01 EXT

LWX 01 EXT

HUMIDITY & TEMPERATURE SENSOR

LWX-01-EXT is a perfect combination of LoRaWAN wireless technology and environmental monitoring like temperature and humidity. LoRaWAN allows LWX-01-EXT ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. With 2 battery, LWX-01-EXT can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

5 years plus sustainability

Download LWX 01 EXT
深知科技Deepsenxe的LoRaWAN無線技術

LWX 02

HT & CO2 Sensor

LWX-02 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, and carbon dioxide (CO2) control. LoRaWAN allows LWX-02 ultra-long-distance transmission (up to 20 KM), lower power consumption, and better safety mechanism for the purpose of customer privacy and data protection. LWX-02 can last for longer than 10 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Carbon dioxide detection

Connectivity

LoRaWAN EU868, US915, AS923

CO2

0 — 5000 ppm

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%, ± 30 ppm

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

2 x 14500 3.6 V

Battery lifetime

10 years (depending on Measurement interval)

Size

76 x 75 x 27 mm

Download LWX 02

LWX 02

HT & CO2 Sensor

LWX-02 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, and carbon dioxide (CO2) control. LoRaWAN allows LWX-02 ultra-long-distance transmission (up to 20 KM), lower power consumption, and better safety mechanism for the purpose of customer privacy and data protection. LWX-02 can last for longer than 10 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Carbon dioxide detection

Download LWX 02
深知科技Deepsenxe的LoRaWAN無線技術

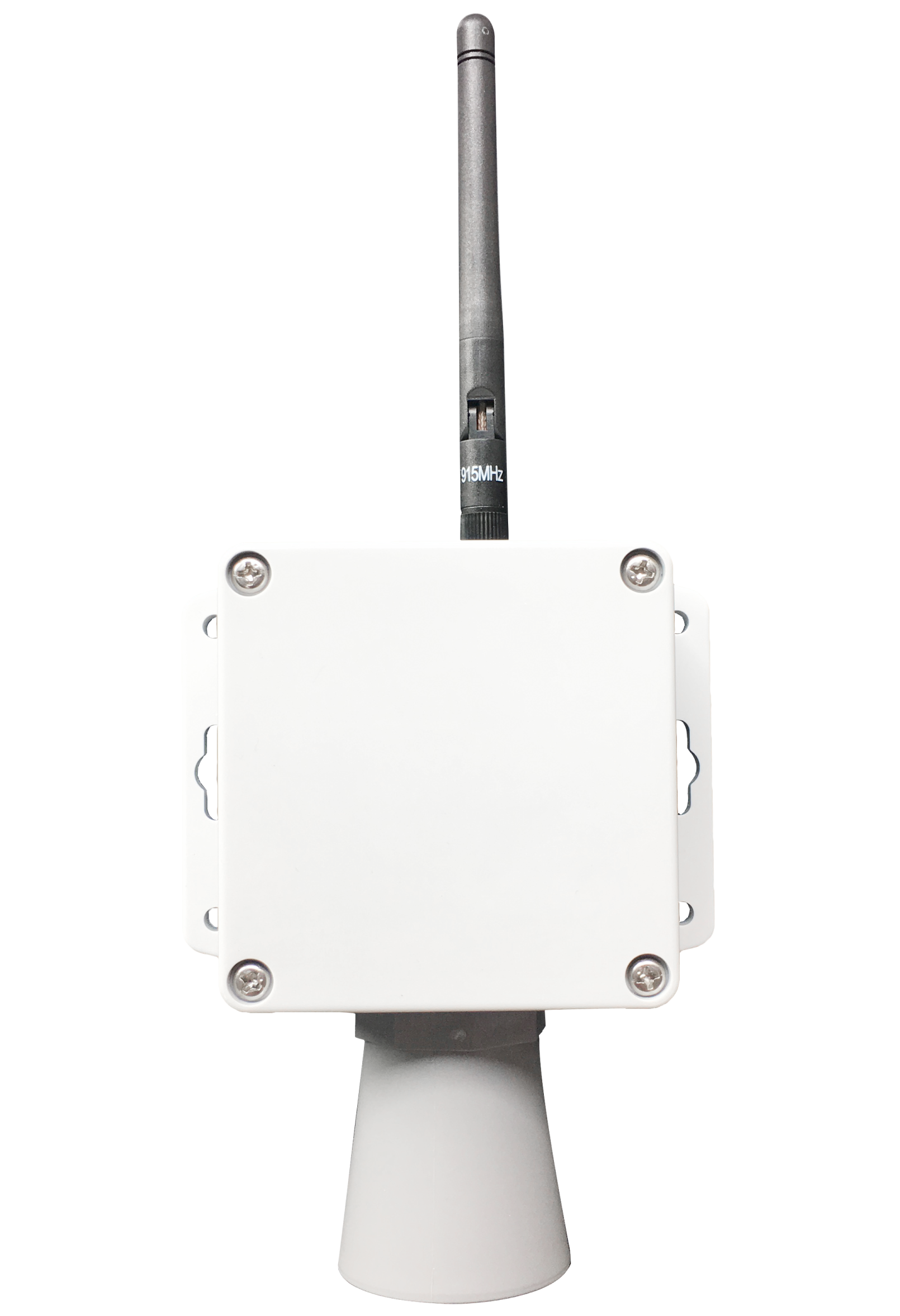

LWX 04

ULTRA-SONIC SENSOR

LWX-04 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like carbon ultra sonic detection and temperature and humidity. LoRaWAN allows LWX-04 ultra-long-distance transmission (up to 20 KM), lower power consumption, and better safety mechanism for the purpose of customer privacy and data protection. LWX-04 can last for longer than 10 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Ultra-Sonic Detection

Connectivity

LoRaWAN EU868, US915, AS923

Distance Range

0 — 5m , 0 — 10m

Waterproof ability

IP 67

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%, 5mm

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

2 x 14500 3.6 V

Battery lifetime

10 years

Download LWX 04

LWX 04

ULTRA-SONIC SENSOR

LWX-04 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like carbon ultra sonic detection and temperature and humidity. LoRaWAN allows LWX-04 ultra-long-distance transmission (up to 20 KM), lower power consumption, and better safety mechanism for the purpose of customer privacy and data protection. LWX-04 can last for longer than 10 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Ultra-Sonic Detection

Download LWX 04
深知科技Deepsenxe的LoRaWAN無線技術

LWX 05

HT & VOC SENSOR

LWX-05 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, and Volatile Organic Compound (VOC) control. LoRaWAN allows LWX-05 ultra-long-distance transmission (up to 20 KM), and better safety mechanism for the purpose of customer privacy and data protection. LWX-05 can achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Volatile Organic Compound detection

Connectivity

LoRaWAN EU868, US915, AS923

TVOC

0 — 60000 ppb

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Measurement interval

Every 5 — 1440 mins (configurable)

Accuracy

± 0.2°C, ± 2%, 1-32 ppb, depending on gas concentration

Battery

USB 5V 1A

Size

76 x 75 x 27 mm

Download LWX 05

LWX 05

HT & VOC SENSOR

LWX-05 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, and Volatile Organic Compound (VOC) control. LoRaWAN allows LWX-05 ultra-long-distance transmission (up to 20 KM), and better safety mechanism for the purpose of customer privacy and data protection. LWX-05 can achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Volatile Organic Compound detection

Download LWX 05
深知科技Deepsenxe的LoRaWAN無線技術

LWX 07

prds_iot.lwx.7.1

prds_iot.lwx.7.2

1

LoRaWAN US915, EU868, AS923 compatible

2

prds_iot.lwx.7.3

3

prds_iot.lwx.7.4

Connectivity

LoRaWAN EU868, US915, AS923

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%, 1μg/m3
PM2.5 Mass concentration
PM2.5 Number Concentration

Measurement interval

Every 5 — 1440 mins (configurable)

Power

USB 5V 1A

Size

76 x 75 x 27 mm

Download LWX 07

LWX 07

prds_iot.lwx.7.1

prds_iot.lwx.7.2

1

LoRaWAN US915, EU868, AS923 compatible

2

prds_iot.lwx.7.3

3

prds_iot.lwx.7.4

Download LWX 07
深知科技Deepsenxe的LoRaWAN無線技術

LWX 10

PM2.5 & CO2 Sensor

LWX-10 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, carbon dioxide (CO2) control, and air pollution detection (PM2.5 sensor equipped). LoRaWAN allows LWX-10 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. Powered through USB, LWX-10 can achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Carbon dioxide detection

3

Air pollution detection (PM2.5 sensor equipped)

Connectivity

LoRaWAN EU868, US915, AS923

CO2 range

400 — 10000 ppm

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%, 30 ppm

Measurement interval

Every 5 — 60 mins (configurable)

Power

USB 5V 1A

Size

76 x 75 x 27 mm

Support TVOC IAQ Rating described by UBA

Download LWX 10

LWX 10

PM2.5 & CO2 Sensor

LWX-10 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, carbon dioxide (CO2) control, and air pollution detection (PM2.5 sensor equipped). LoRaWAN allows LWX-10 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. Powered through USB, LWX-10 can achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Carbon dioxide detection

3

Air pollution detection (PM2.5 sensor equipped)

Download LWX 10
深知科技Deepsenxe的LoRaWAN無線技術

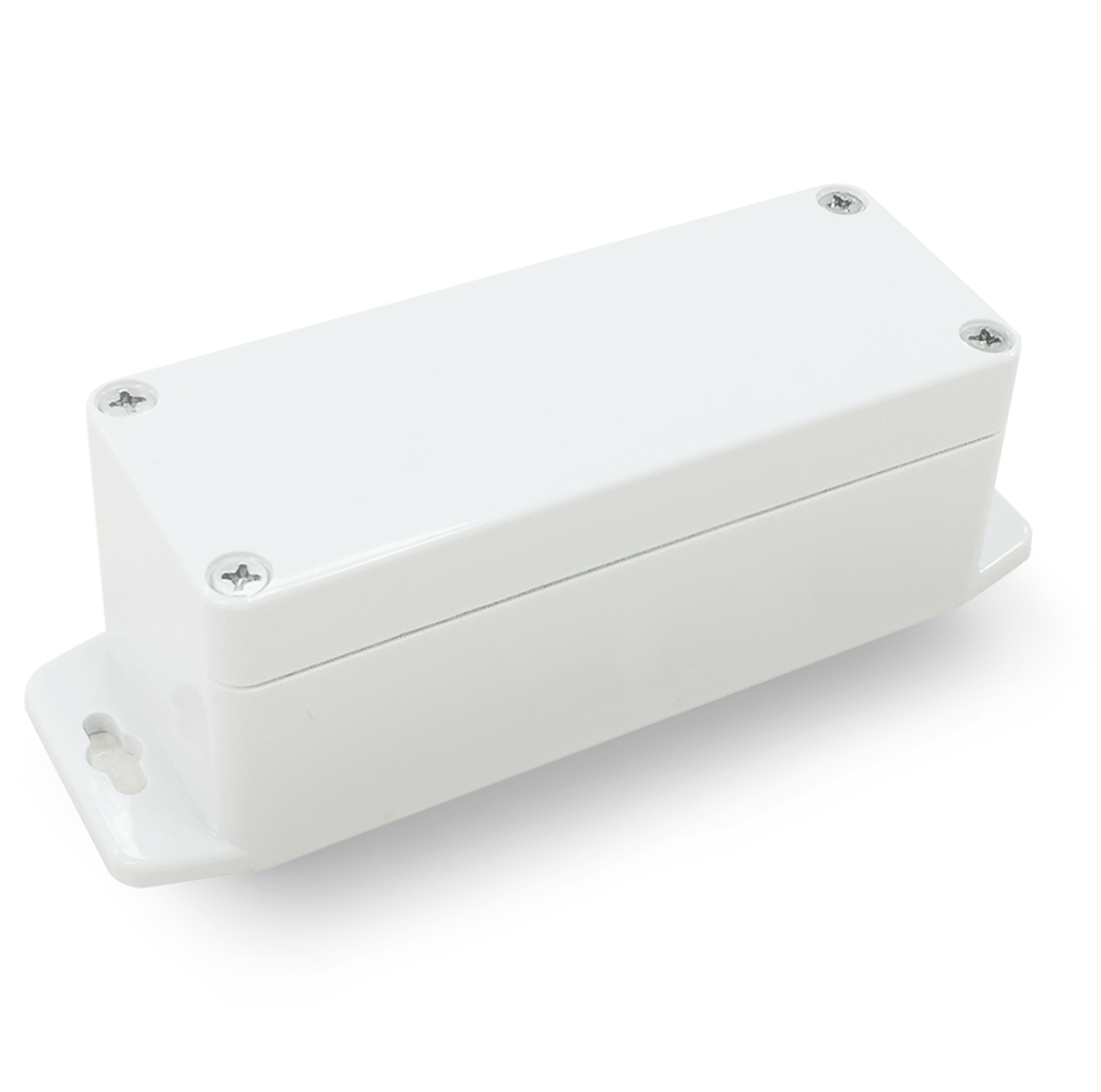

LWX 11

LONG-RANGE HOUSEHOLD ALARM SETS SENSOR

LWX-11 is a perfect combination of LoRaWAN wireless technology and long-range household door/window alarm sets. LoRaWAN allows LWX-11 Ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. LWX-11 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission

3

Long-range household door / window alarm sets

深知科技Deepsenxe的LoRaWAN無線技術

Connectivity

LoRaWAN EU868, US915, AS923

Measurement interval

Every 5 — 60 mins (configurable)

Battery

1 x 14500 3.6V

Battery lifetime

5 years (depending on Measurement interval)

Download LWX 11

LWX 11

LONG-RANGE HOUSEHOLD ALARM SETS SENSOR

LWX-11 is a perfect combination of LoRaWAN wireless technology and long-range household door/window alarm sets. LoRaWAN allows LWX-11 Ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. LWX-11 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission

3

Long-range household door / window alarm sets

深知科技Deepsenxe的LoRaWAN無線技術
Download LWX 11
深知科技Deepsenxe的LoRaWAN無線技術

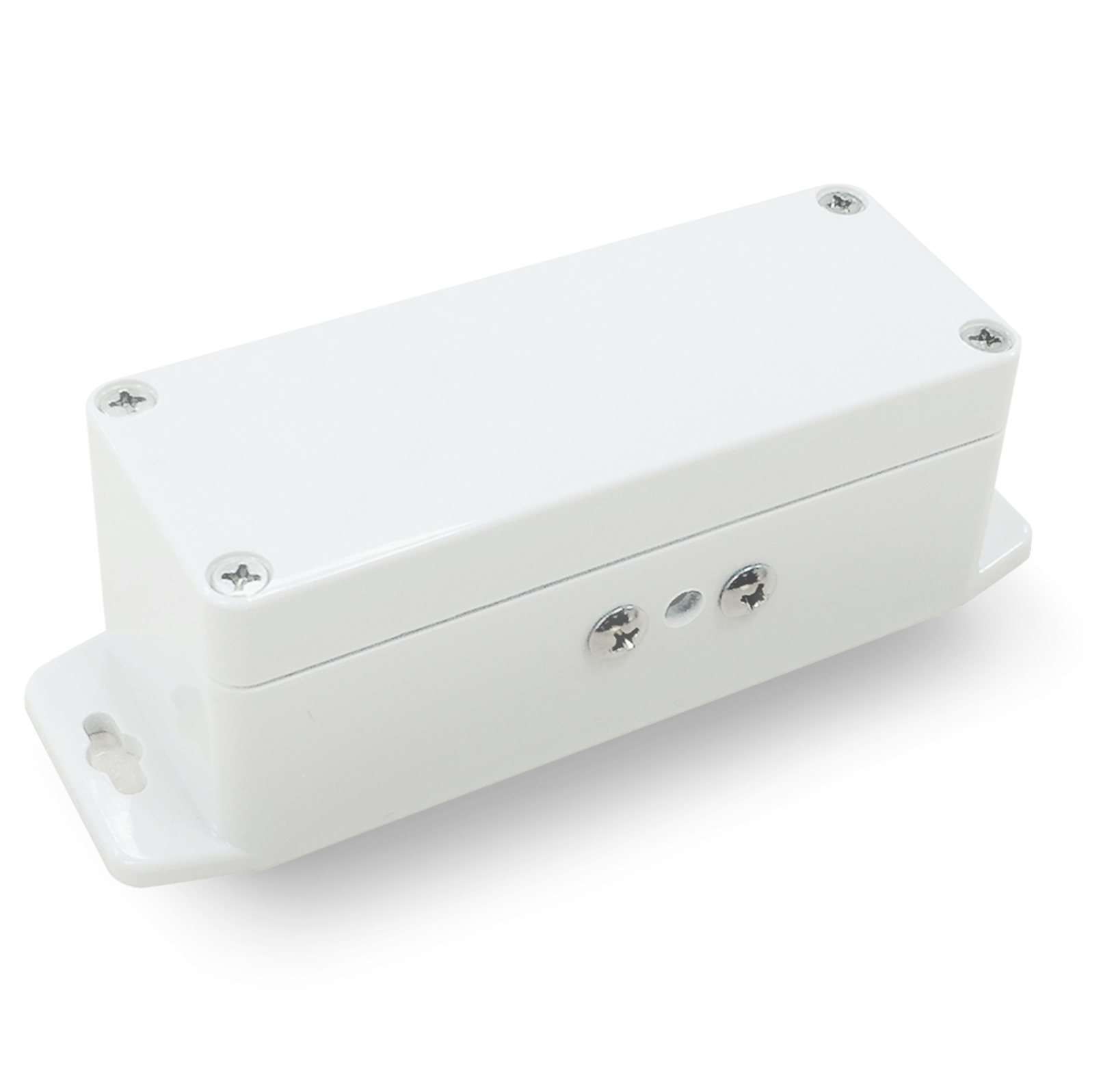

LWX 16

DETECTION SENSOR

LWX-16 is a perfect combination of LoRaWAN wireless technology and landslide detection. At the moment when a large scale landslide is imminent, warnings by our device can be transmitted immediately for local residents, and government crisis management. LoRaWAN allows LWX-16 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. LWX-16 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission

3

landslide detection

Connectivity

LoRaWAN EU868, US915, AS923

Measurement interval

Every 5 — 60 mins (configurable)

Power

1 x 14500 3.6 V, 2 x 14500 3.6 V

Battery lifetime

5 years (depending on Measurement interval)

Download LWX 16

LWX 16

DETECTION SENSOR

LWX-16 is a perfect combination of LoRaWAN wireless technology and landslide detection. At the moment when a large scale landslide is imminent, warnings by our device can be transmitted immediately for local residents, and government crisis management. LoRaWAN allows LWX-16 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. LWX-16 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission

3

landslide detection

Download LWX 16
深知科技Deepsenxe的LoRaWAN無線技術

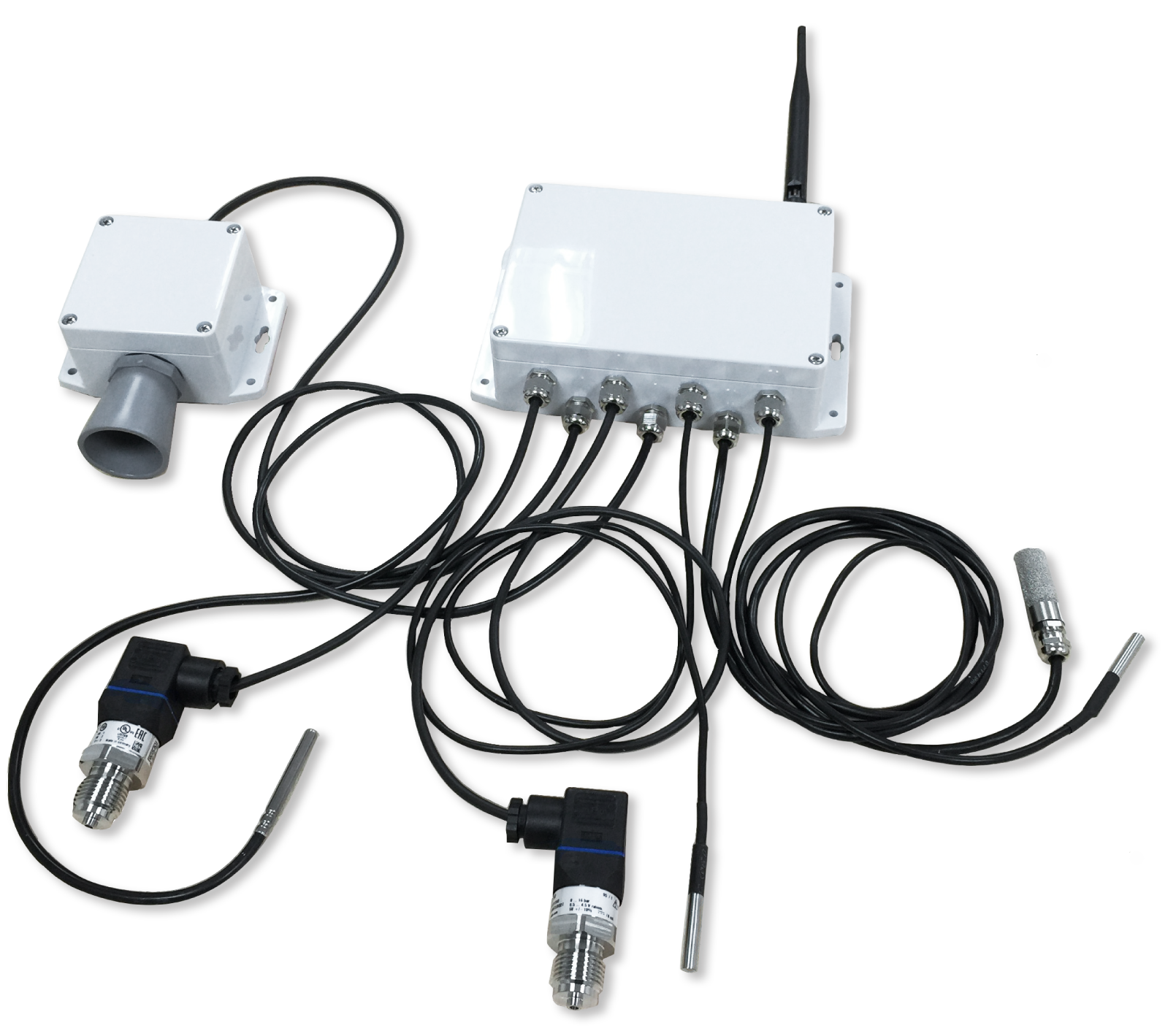

LWX Hub

SENSOR HUB

Sensor Hub is an innovative LoRaWAN™ device with adequate I/Os which can connect up to 9 external sensors. Large battery capacity. Designed to save system cost and improve maintenance efficiency! One Sensor Hub can connect with multiple external sensors. Each sensor is able to be configured individually, such as data rate, report interval.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

District heating monitoring

Connectivity

LoRaWAN EU868, US915, AS923

RF sensitivity

-135.5 dBm

RF power

+14 dBm

IP rating

IP 67

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

>±0.2oC, ±2% RH

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

3.6V, up to 4 x 2600 mAh

Battery lifetime

10+ years

Size

121 x 171 x 55 mm

Download LWX Hub

LWX Hub

SENSOR HUB

Sensor Hub is an innovative LoRaWAN™ device with adequate I/Os which can connect up to 9 external sensors. Large battery capacity. Designed to save system cost and improve maintenance efficiency! One Sensor Hub can connect with multiple external sensors. Each sensor is able to be configured individually, such as data rate, report interval.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

District heating monitoring

Download LWX Hub
深知科技Deepsenxe的LoRaWAN無線技術

LWX 01

HUMIDITY & TEMPERATURE SENSOR

LWX 01

HUMIDITY & TEMPERATURE SENSOR

LWX-01 is a perfect combination of LoRaWAN wireless technology and environmental monitoring like temperature and humidity. LoRaWAN allows LWX-01 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. With 1 battery, LWX-01 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

5 years plus sustainability

Connectivity

LoRaWAN EU868, US915, AS923

RF Sensitivity

-135.5 dBm

RF power

+14 dBm

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

2 x 14500 3.6 V

Battery lifetime

5 years (depending on Measurement interval)

Size

76 x 75 x 27 mm

Download LWX 01
深知科技Deepsenxe的LoRaWAN無線技術

LWX 01 EXT

HUMIDITY & TEMPERATURE SENSOR

LWX 01 EXT

HUMIDITY & TEMPERATURE SENSOR

LWX-01-EXT is a perfect combination of LoRaWAN wireless technology and environmental monitoring like temperature and humidity. LoRaWAN allows LWX-01-EXT ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. With 2 battery, LWX-01-EXT can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

5 years plus sustainability

Connectivity

LoRaWAN EU868, US915, AS923

RF Sensitivity

-135.5 dBm

RF power

+14 dBm

Gain

2.61 dBi

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

2 x 14500 3.6 V

Battery lifetime

5 years (depending on Measurement interval)

Size

76 x 75 x 27 mm

Download LWX 01 EXT
深知科技Deepsenxe的LoRaWAN無線技術

LWX 02

HT & CO2 Sensor

LWX 02

HT & CO2 Sensor

LWX-02 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, and carbon dioxide (CO2) control. LoRaWAN allows LWX-02 ultra-long-distance transmission (up to 20 KM), lower power consumption, and better safety mechanism for the purpose of customer privacy and data protection. LWX-02 can last for longer than 10 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Carbon dioxide detection

Connectivity

LoRaWAN EU868, US915, AS923

CO2

0 — 5000 ppm

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%, ± 30 ppm

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

2 x 14500 3.6 V

Battery lifetime

10 years (depending on Measurement interval)

Size

76 x 75 x 27 mm

Download LWX 02
深知科技Deepsenxe的LoRaWAN無線技術

LWX 04

ULTRA-SONIC SENSOR

LWX 04

ULTRA-SONIC SENSOR

LWX-04 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like carbon ultra sonic detection and temperature and humidity. LoRaWAN allows LWX-04 ultra-long-distance transmission (up to 20 KM), lower power consumption, and better safety mechanism for the purpose of customer privacy and data protection. LWX-04 can last for longer than 10 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Ultra-Sonic Detection

Connectivity

LoRaWAN EU868, US915, AS923

Distance Range

0 — 5m , 0 — 10m

Waterproof ability

IP 67

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%, 5mm

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

2 x 14500 3.6 V

Battery lifetime

10 years

Download LWX 04
深知科技Deepsenxe的LoRaWAN無線技術

LWX 05

HT & VOC SENSOR

LWX 05

HT & VOC SENSOR

LWX-05 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, and Volatile Organic Compound (VOC) control. LoRaWAN allows LWX-05 ultra-long-distance transmission (up to 20 KM), and better safety mechanism for the purpose of customer privacy and data protection. LWX-05 can achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

Volatile Organic Compound detection

Connectivity

LoRaWAN EU868, US915, AS923

TVOC

0 — 60000 ppb

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Measurement interval

Every 5 — 1440 mins (configurable)

Accuracy

± 0.2°C, ± 2%, 1-32 ppb, depending on gas concentration

Battery

USB 5V 1A

Size

76 x 75 x 27 mm

Download LWX 05
深知科技Deepsenxe的LoRaWAN無線技術

LWX 07

prds_iot.lwx.7.1

LWX 07

prds_iot.lwx.7.1

prds_iot.lwx.7.2

1

LoRaWAN US915, EU868, AS923 compatible

2

prds_iot.lwx.7.3

3

prds_iot.lwx.7.4

Connectivity

LoRaWAN EU868, US915, AS923

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%, 1μg/m3
PM2.5 Mass concentration
PM2.5 Number Concentration

Measurement interval

Every 5 — 1440 mins (configurable)

Power

USB 5V 1A

Size

76 x 75 x 27 mm

Download LWX 07
深知科技Deepsenxe的LoRaWAN無線技術

LWX 10

PM2.5 & CO2 Sensor

LWX 10

PM2.5 & CO2 Sensor

LWX-10 is a perfect combination of LoRaWAN wireless technology, environmental monitoring like temperature and humidity, carbon dioxide (CO2) control, and air pollution detection (PM2.5 sensor equipped). LoRaWAN allows LWX-10 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. Powered through USB, LWX-10 can achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Carbon dioxide detection

3

Air pollution detection (PM2.5 sensor equipped)

Connectivity

LoRaWAN EU868, US915, AS923

CO2 range

400 — 10000 ppm

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

± 0.2°C, ± 2%, 30 ppm

Measurement interval

Every 5 — 60 mins (configurable)

Power

USB 5V 1A

Size

76 x 75 x 27 mm

Support TVOC IAQ Rating described by UBA

Download LWX 10
深知科技Deepsenxe的LoRaWAN無線技術

LWX 11

LONG-RANGE HOUSEHOLD ALARM SETS SENSOR

LWX 11

LONG-RANGE HOUSEHOLD ALARM SETS SENSOR

LWX-11 is a perfect combination of LoRaWAN wireless technology and long-range household door/window alarm sets. LoRaWAN allows LWX-11 Ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. LWX-11 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission

3

Long-range household door / window alarm sets

深知科技Deepsenxe的LoRaWAN無線技術

Connectivity

LoRaWAN EU868, US915, AS923

Measurement interval

Every 5 — 60 mins (configurable)

Battery

1 x 14500 3.6V

Battery lifetime

5 years (depending on Measurement interval)

Download LWX 11
深知科技Deepsenxe的LoRaWAN無線技術

LWX 16

DETECTION SENSOR

LWX 16

DETECTION SENSOR

LWX-16 is a perfect combination of LoRaWAN wireless technology and landslide detection. At the moment when a large scale landslide is imminent, warnings by our device can be transmitted immediately for local residents, and government crisis management. LoRaWAN allows LWX-16 ultra-long-distance transmission, lower power consumption, and better safety mechanism for the purpose of better customer privacy and data protection. LWX-16 can last for longer than 5 years in order to achieve maximum flexibility, with significant reduction of maintenance frequency.

1

LoRaWAN US915, EU868, AS923

2

Ultra-Long-Range signal transmission

3

landslide detection

Connectivity

LoRaWAN EU868, US915, AS923

Measurement interval

Every 5 — 60 mins (configurable)

Power

1 x 14500 3.6 V, 2 x 14500 3.6 V

Battery lifetime

5 years (depending on Measurement interval)

Download LWX 16
深知科技Deepsenxe的LoRaWAN無線技術

LWX Hub

SENSOR HUB

LWX Hub

SENSOR HUB

Sensor Hub is an innovative LoRaWAN™ device with adequate I/Os which can connect up to 9 external sensors. Large battery capacity. Designed to save system cost and improve maintenance efficiency! One Sensor Hub can connect with multiple external sensors. Each sensor is able to be configured individually, such as data rate, report interval.

1

LoRaWAN US915, EU868, AS923 compatible

2

Ultra-Long-Range signal transmission (up to 20 KM)

3

District heating monitoring

Connectivity

LoRaWAN EU868, US915, AS923

RF sensitivity

-135.5 dBm

RF power

+14 dBm

IP rating

IP 67

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

>±0.2oC, ±2% RH

Measurement interval

Every 5 — 1440 mins (configurable)

Battery

3.6V, up to 4 x 2600 mAh

Battery lifetime

10+ years

Size

121 x 171 x 55 mm

Download LWX Hub
