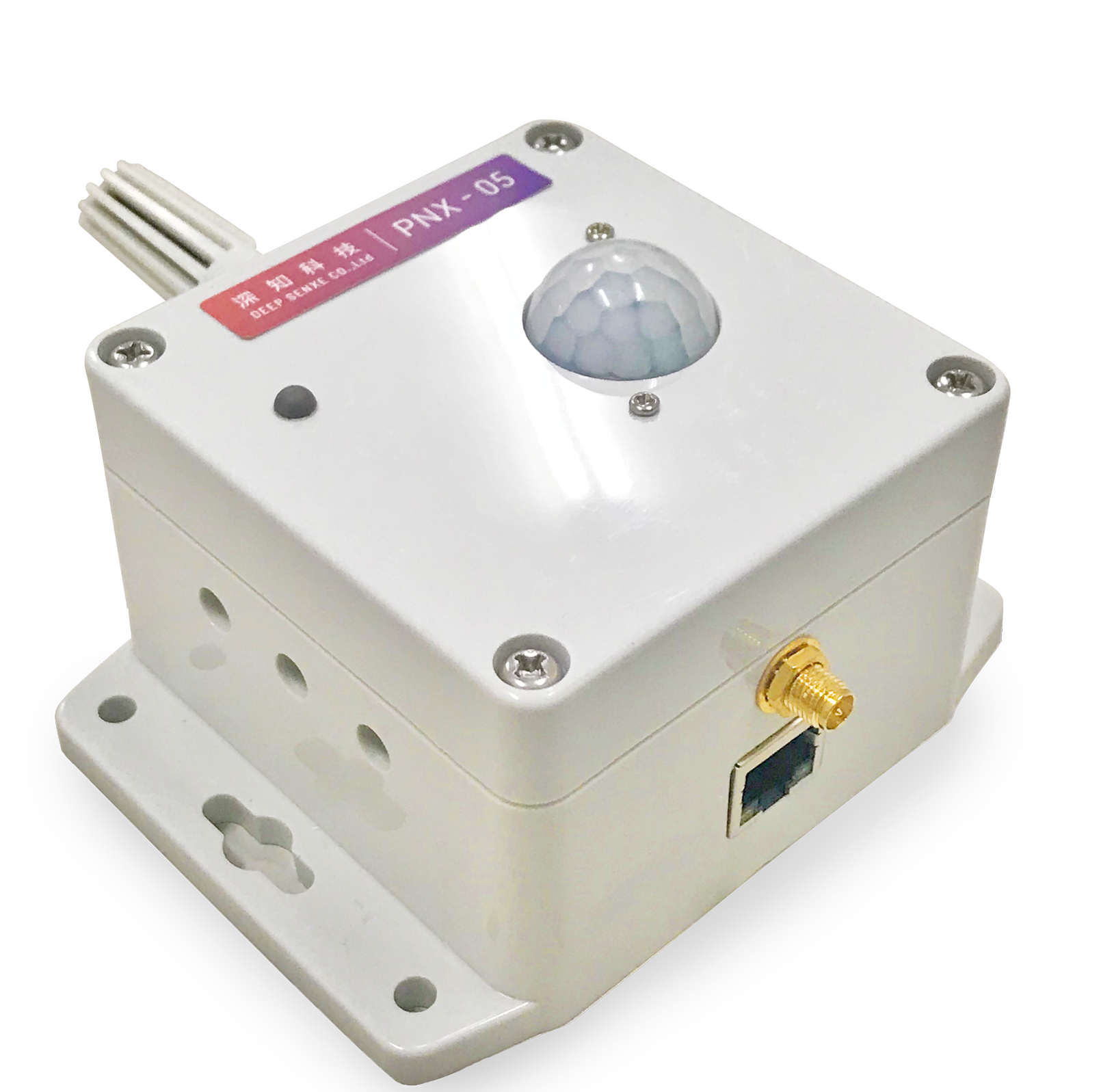

PNX 05
Bluetooth
1
Supports Bluetooth 4.1 and is BLE (Bluetooth Low Energy) Two-way communication function.
2
Support with directional antenna or global antenna.
3
Powered by PoE and USB.
4
Transmitted by RJ45 network cable and WiFi (802.11 b/g/n)
5
It can scan to receive or broadcast Beacon signals.
6
Environmental monitoring function: Light sensor detection function, Infrared sensor, Temperature and humidity sensor detection function.
Power Supply
USB 5V / IEEE802.3af PoE
Ethernet
One port IEEE 802.3 10/100Base-T
Bluetooth Version
v4.1 for iBeacon
BLE Frequency Range
2.402 – 2.480 GHz
BLE Range
~ 20m in indoor
BLE iBeacon Broadcast Period
100 ms
BLE antenna Type for iBeacon
Build-in PCB antenna
WiFi
Support 150M 2.4Ghz WiFi, 802.11 b/g/n
WiFi Frequency Range
2.400 – 2.4835GHz
WiFi Antenna Type
Build-in PCB antenna
Power Consumption
330mA for File transfer in all interfaces
Environmental (Operating Temp.)
30° C to +85° C
Environmental (Storage Temp.)
-40° C to +85° C
Environmental (Humidity)
max. 95%RH
