深知科技Deepsenxe的WiFi通訊產品

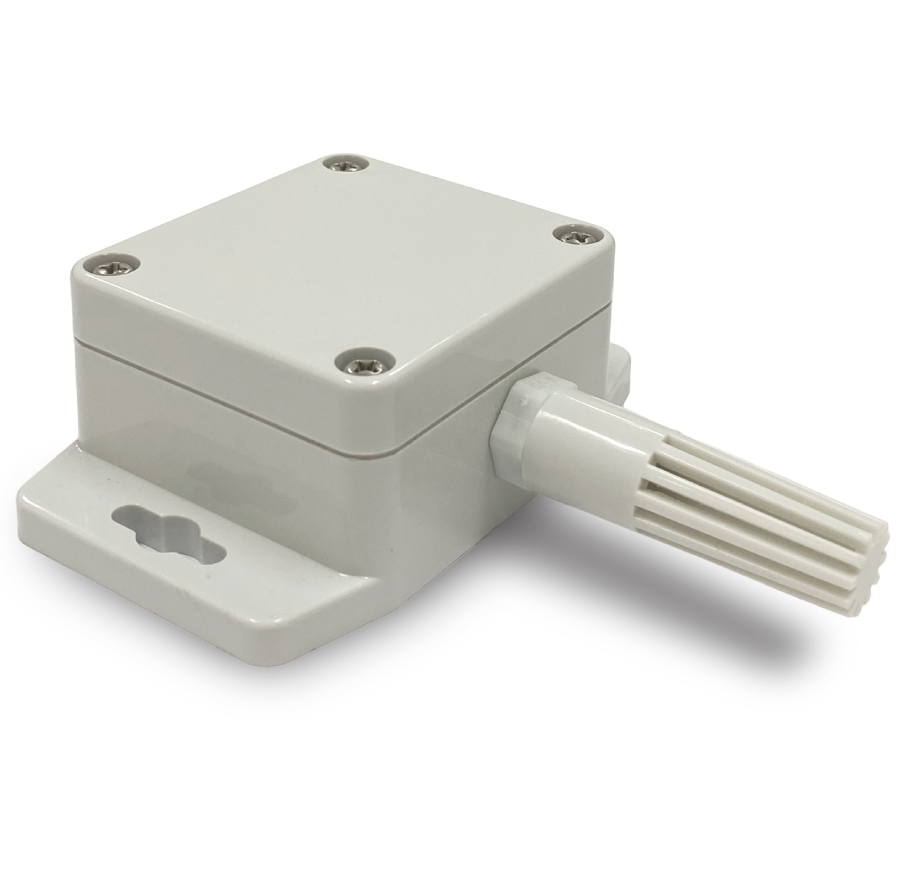

WFX 01

HUMIDITY & TEMPERATURE READER

1

The temperature and humidity status can be read instantly.

2

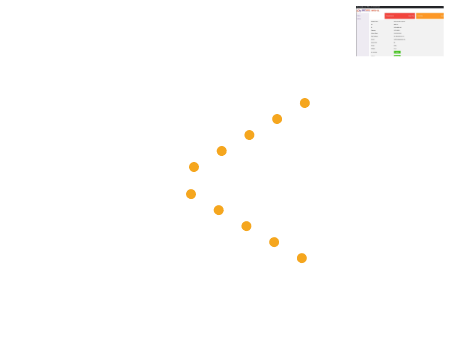

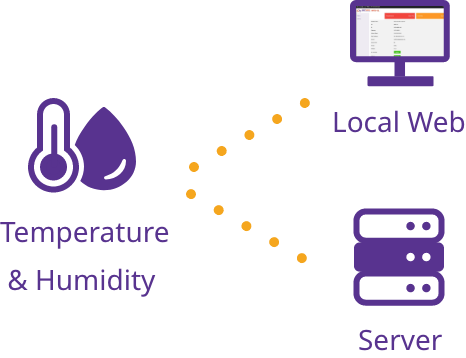

The reader has its own web page that can display temperature and humidity values.

3

WiFi communication.

4

Apply for WiFi AP already ready area.

5

Plug and play.

Protocols

802.11b/g/n

Center frequency range

2412 - 2484 MHz

Antenna

Built-in or SMA output

Power Input

Voltage Range

5V Micro USB

Input Current

0.5A max.

Other interface

LEDx1

Blink with 1.5s off and 0.5s on: During WiFi connection or alarm happen.
Always ON: Normal Operation.

Button

Long press 3 seconds will enter the AP mode for setting the SSID and Password of WiFi.

Sensor

Temperature range

-20 — +75°C

Accuracy

+-2 %RH, 0.2˚C

Humidity range

0 — 99%

Range

0 to 99%RH, -20 to 75˚C

Download WFX 01

WFX 01

HUMIDITY & TEMPERATURE READER

1

The temperature and humidity status can be read instantly.

2

The reader has its own web page that can display temperature and humidity values.

3

WiFi communication.

4

Apply for WiFi AP already ready area.

5

Plug and play.

Download WFX 01
深知科技Deepsenxe的WiFi通訊產品

WFX 02

HT & CO2 Sensor

1

The temperature and humidity status can be read instantly.

2

Carbon dioxide detection

3

The reader has its own web page that can display temperature, humidity and Carbon dioxide values.

4

Apply for WiFi AP already ready area.

5

WiFi communication.

Protocols

802.11b/g/n

Center frequency range

2412 - 2484 MHz

Antenna

Built-in or SMA output

Power Input

Voltage Range

5V Micro USB

Input Current

0.5A max.

Other interface

LEDx1

Blink with 1.5s off and 0.5s on: During WiFi connection or alarm happen.
Always ON: Normal Operation.

Button

Long press 3 seconds will enter the AP mode for setting the SSID and Password of WiFi.

Sensor

CO2

0 — 5000 ppm

Temperature range

-20 — +75°C

Humidity range

0 — 99%

Accuracy

+-2 %RH, 0.2˚C

Range

0 to 99%RH, -20 to 75˚C

Download WFX 02

WFX 02

HT & CO2 Sensor

1

The temperature and humidity status can be read instantly.

2

Carbon dioxide detection

3

The reader has its own web page that can display temperature, humidity and Carbon dioxide values.

4

Apply for WiFi AP already ready area.

5

WiFi communication.

Download WFX 02
深知科技Deepsenxe的WiFi通訊產品

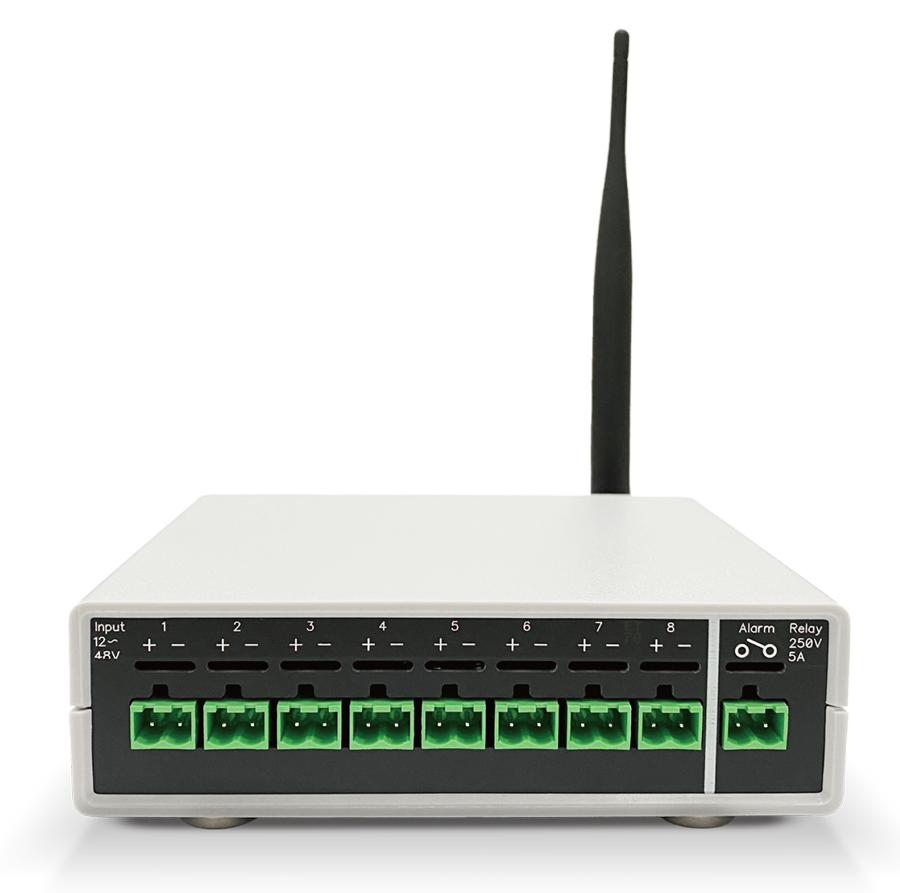

WFX 03 Slave

Protocols

802.11b/g/n

Center frequency range

2412 - 2484 MHz

Antenna

Built-in or SMA output

Power Input

Voltage Range

8 - 28V

Input Current

1A max.

Trigger Input

Ports

8

Input Low Voltage

1V max. or open

Input High Voltage

22V min. (maximum 28V)

Input Current

3mA typ.

Relay Output.

Ports

1 for WiFi disconnect alarm

Contact Type

SPDT

Rated Voltage

30VDC, 250VAC

Rated Current

10A

Other interface

LEDx1

Blink with 1.5s off and 0.5s on: During WiFi connection or alarm happen.
Always ON: Normal Operation.

Button

Long press 3 seconds will enter the AP mode for setting the SSID and Password of WiFi.

WFX 03 Slave

深知科技Deepsenxe的WiFi通訊產品

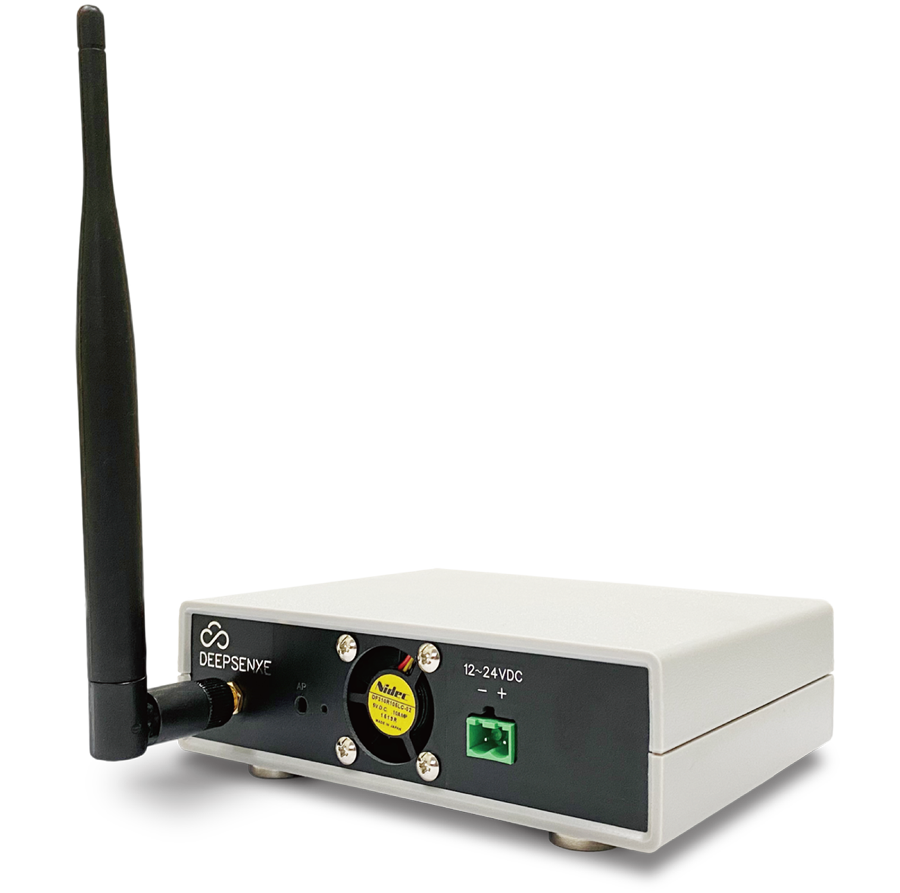

WFX 03 Master

Protocols

802.11b/g/n

Center frequency range

2412 - 2484 MHz

Antenna

Built-in or SMA output

Power Input

Voltage Range

8 - 28V

Input Current

1A max.

Relay Output

Ports

9 (one for WiFi disconnect alarm)

Contact Type

SPDT

Rated Voltage

30VDC, 250VAC

Rated Current

10A

Other interface

LEDx1

Blink with 1.5s off and 0.5s on: During WiFi connection or alarm happen.
Always ON: Normal Operation.

Button

Long press 3 seconds will enter the AP mode for setting the SSID and Password of WiFi.

WFX 03 Master

深知科技Deepsenxe的WiFi通訊產品

WFX 04

4-20mA CURRENT READER

Protocols

802.11b/g/n

Center frequency range

2412 - 2484 MHz

Antenna

Built-in or SMA output

Power Input

Voltage Range

5V Micro USB

Input Current

0.5A max.

Other interface

LEDx1

Blink with 1.5s off and 0.5s on: During WiFi connection or alarm happen.
Always ON: Normal Operation.

Button

Long press 3 seconds will enter the AP mode for setting the SSID and Password of WiFi.

Current reader

4 — 20 mA

Accuracy

± 0.2°C, ± 2%, 5mm

Waterproof ability

IP 67

Measurement interval

Every 5 — 1440 mins (configurable)

Distance Range

0 — 5m , 0 — 10m

Humidity range

0 — 99%

WFX 04

4-20mA CURRENT READER

深知科技Deepsenxe的WiFi通訊產品

WFX 06

HT & PM2.5 SENSOR

1

The temperature, humidity and PM2.5 status can be read instantly.

2

The reader has its own web page that can display temperature, humidity and PM2.5 values.

3

Apply for WiFi AP already ready area.

4

WiFi communication.

Protocols

802.11b/g/n

Center frequency range

2412 - 2484 MHz

Antenna

Built-in or SMA output

Power Input

Voltage Range

5V Micro USB

Input Current

0.5A max.

Other interface

LEDx1

Blink with 1.5s off and 0.5s on: During WiFi connection or alarm happen.
Always ON: Normal Operation.

Button

Long press 3 seconds will enter the AP mode for setting the SSID and Password of WiFi.

Temperature range

-20 — +75°C

Accuracy

± 0.2°C, ± 2%, 1μg/m3 PM2.5 Mass concentration, PM2.5 Number Concentration

Measurement interval

Every 5 — 1440 mins (configurable)

Power

USB 5V 1A

Humidity range

0 — 99%

Size

76 x 75 x 27 mm

Download WFX 06

WFX 06

HT & PM2.5 SENSOR

1

The temperature, humidity and PM2.5 status can be read instantly.

2

The reader has its own web page that can display temperature, humidity and PM2.5 values.

3

Apply for WiFi AP already ready area.

4

WiFi communication.

Download WFX 06
深知科技Deepsenxe的WiFi通訊產品

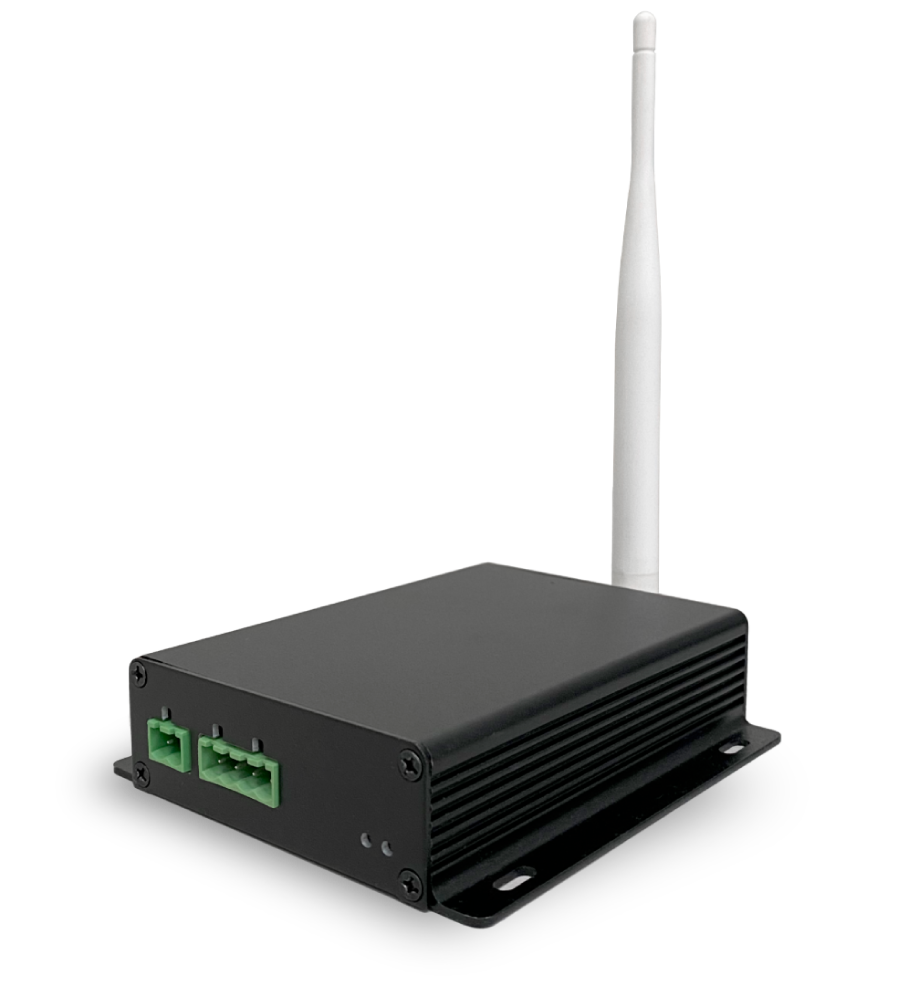

WFX 08

WATER FLOW READER

1

Instant reading of water flow.

2

The reader has its own web page that can display water flow values.

3

WiFi communication.

4

Apply for WiFi AP already ready area.

5

Suitable for 18 - 48V or PoE for power supply.

Protocols

802.11b/g/n

Center frequency range

2412 - 2484 MHz

Antenna

Built-in or SMA output

Power Input

Voltage Range

2412 - 2484 MHz

Input Current

0.2A max.

Other interface

LED x 5

One LED for RS485 Status.
One LED for Internet Status.
One LED for AP Mode indication.
Two LEDs for the TX and RX of USB.
One Power LED.

AP Button

Long press 3 seconds will enter the AP mode for setting the SSID and Password of WiFi.
Reset Button.
Reset the System.

Sensor

Waterflow meter.

Download WFX 08

WFX 08

WATER FLOW READER

1

Instant reading of water flow.

2

The reader has its own web page that can display water flow values.

3

WiFi communication.

4

Apply for WiFi AP already ready area.

5

Suitable for 18 - 48V or PoE for power supply.

Download WFX 08
深知科技Deepsenxe的WiFi通訊產品

WFX 09

METER READER

1

Instant reading of electricity meter.

2

The reader has its own web page that can display meter values.

3

WiFi communication.

4

Apply for WiFi AP already ready area.

5

Suitable for 18 - 48V or PoE for power supply.

Protocols

802.11b/g/n

Center frequency range

2412 - 2484 MHz

Antenna

Built-in or SMA output

Power Input

Voltage Range

18 - 48V (normal 24V) / PoE

Input Current

0.2A max.

Other interface

LED x 5

One LED for RS485 Status.
One LED for Internet Status.
One LED for AP Mode indication.
Two LEDs for the TX and RX of USB.
One Power LED.

AP Button

Long press 3 seconds will enter the AP mode for setting the SSID and Password of WiFi.
Reset Button.
Reset the System.

Sensor

A phase current, B phase current, C phase current, A phase voltage, B phase voltage, C phase voltage, accumulation of electricity, quantity meter, Instant power

Download WFX 09

WFX 09

METER READER

1

Instant reading of electricity meter.

2

The reader has its own web page that can display meter values.

3

WiFi communication.

4

Apply for WiFi AP already ready area.

5

Suitable for 18 - 48V or PoE for power supply.

Download WFX 09
