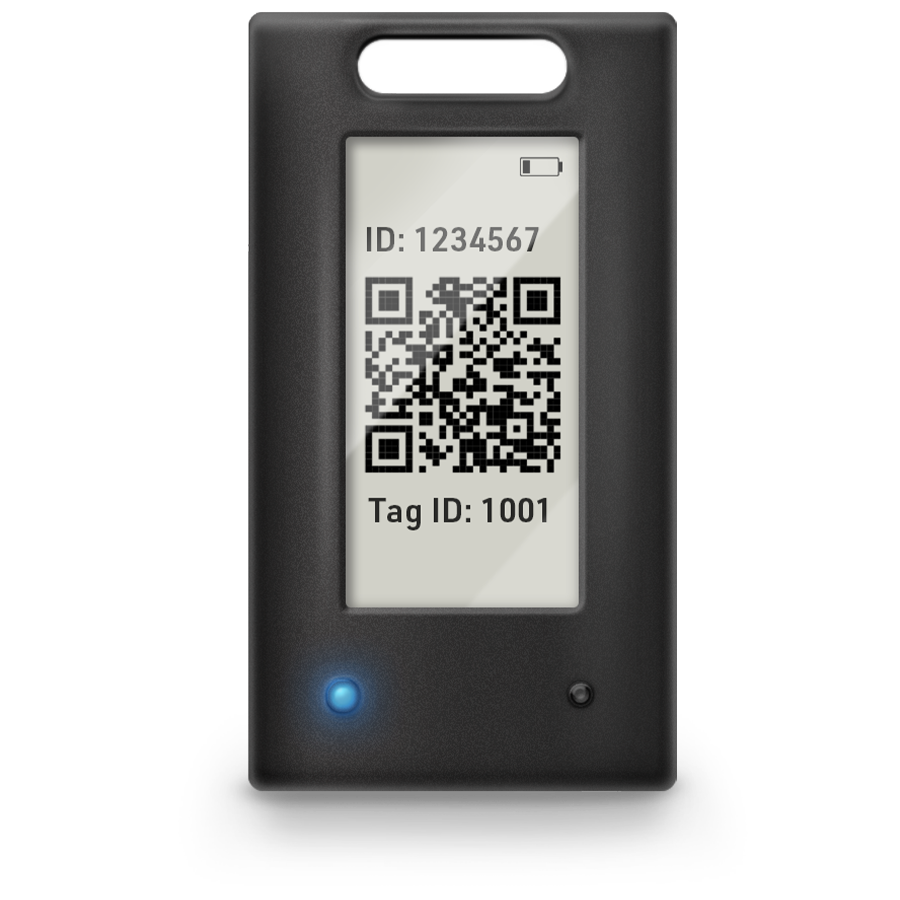

UWB Tag

The personnel care system includes the main system interface and personnel positioning bracelet (UWB Tag). The main function is to ensure the personal safety of workers, outsourcing manufacturers or other personnel entering the factory, and prevent industrial safety incidents.
There are many sensors in the Tag. The values ​​detected by the sensors are transmitted to the main system screen through the base station network, so that the management personnel in the control room can grasp the status of all the workers on site at the first time for appropriate emergency deal with.

1

Active help function.

2

Fall detection function.

3

Bluetooth area positioning.

4

EPD display, including power, job number, tag ID and QR code.

EPD Protocol

Protocol

BLE 5.2

Frequency

2.4GHz

Antenna

Built-in chip antenna

TX power

0 dbm

Display Size

2.13

Display Area

48 x 23 mm

Display Color

Black and white

Resolution

Black and white

Size (without protrusion)

98 x 54 x 14.4 mm

UWB Antenna

UWB Compliant

IEEE802.15.4-2011

UWB Frequency

3.5G – 6.5GHz

Battery

lithium polymer 500mAh

Battery Life

2 weeks

Battery Charge interface

Micro USB maximum 0.5A

Interface

A blue LED status indicator
A button for emergency

UWB Tag

The personnel care system includes the main system interface and personnel positioning bracelet (UWB Tag). The main function is to ensure the personal safety of workers, outsourcing manufacturers or other personnel entering the factory, and prevent industrial safety incidents.
There are many sensors in the Tag. The values ​​detected by the sensors are transmitted to the main system screen through the base station network, so that the management personnel in the control room can grasp the status of all the workers on site at the first time for appropriate emergency deal with.

1

Active help function.

2

Fall detection function.

3

Bluetooth area positioning.

4

EPD display, including power, job number, tag ID and QR code.

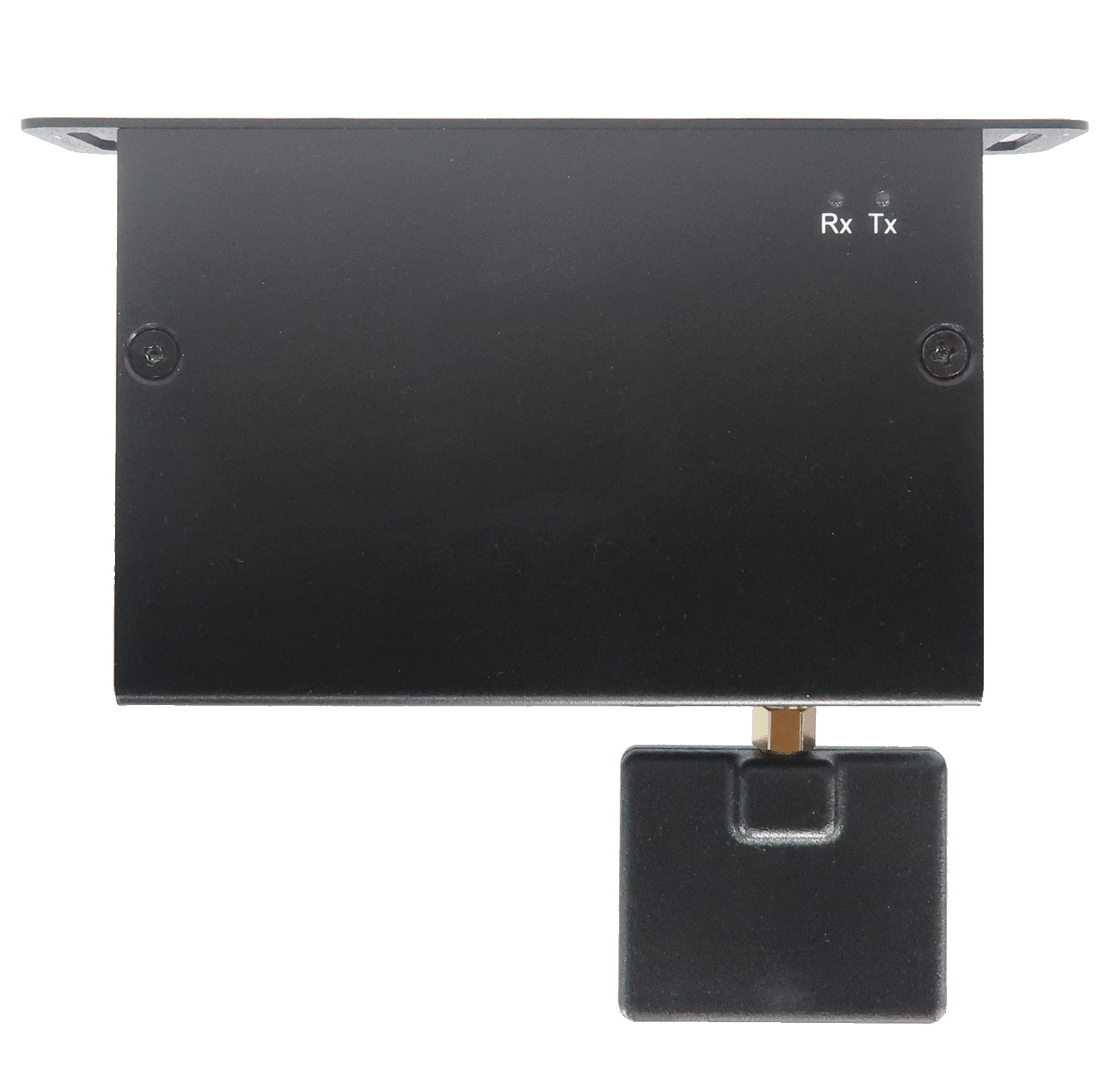

UWB STA

UWB Spec.

UWB Compliant

IEEE802.15.4-2011

UWB Frequency

3.5G – 6.5GHz

UWB Antenna

Frequency: 3 GHz to 8 GHz
Maximum Gain: 2.2 dBi at 4 GHz 3.3 dBi at 6.5 GHz
Directional: Omni

POE Spec.

POE Compliant

POE Compliant IEEE 802.3af-2003

POE Class

POE Class Class 0

Maximum Current Consumption

Maximum Current Consumption 160mA
(350mA current Limit for IEEE 802.3af)

Isolation

1500V

Ethernet Spec.

Connection speed

10/100Mb and Full/Half-duplex supported

Protocol

Fixed IP and DHCP

Maximum Current Consumption

Maximum Current Consumption 160mA
(350mA current Limit for IEEE 802.3af)

Management

a. TFTP Over-the-air programming support
b. Parameter and Status control though WEB

UWB STA

UWB EPD Tag

UWB Tag

The personnel care system includes the main system interface and personnel positioning bracelet (UWB Tag). The main function is to ensure the personal safety of workers, outsourcing manufacturers or other personnel entering the factory, and prevent industrial safety incidents.
There are many sensors in the Tag. The values ​​detected by the sensors are transmitted to the main system screen through the base station network, so that the management personnel in the control room can grasp the status of all the workers on site at the first time for appropriate emergency deal with.

1

Active help function.

2

Fall detection function.

3

Bluetooth area positioning.

4

EPD display, including power, job number, tag ID and QR code.

EPD Protocol

Protocol

BLE 5.2

Frequency

2.4GHz

Antenna

Built-in chip antenna

TX power

0 dbm

Display Size

2.13

Display Area

48 x 23 mm

Display Color

Black and white

Resolution

Black and white

Size (without protrusion)

98 x 54 x 14.4 mm

UWB Antenna

UWB Compliant

IEEE802.15.4-2011

UWB Frequency

3.5G – 6.5GHz

Battery

lithium polymer 500mAh

Battery Life

2 weeks

Battery Charge interface

Micro USB maximum 0.5A

Interface

A blue LED status indicator
A button for emergency
