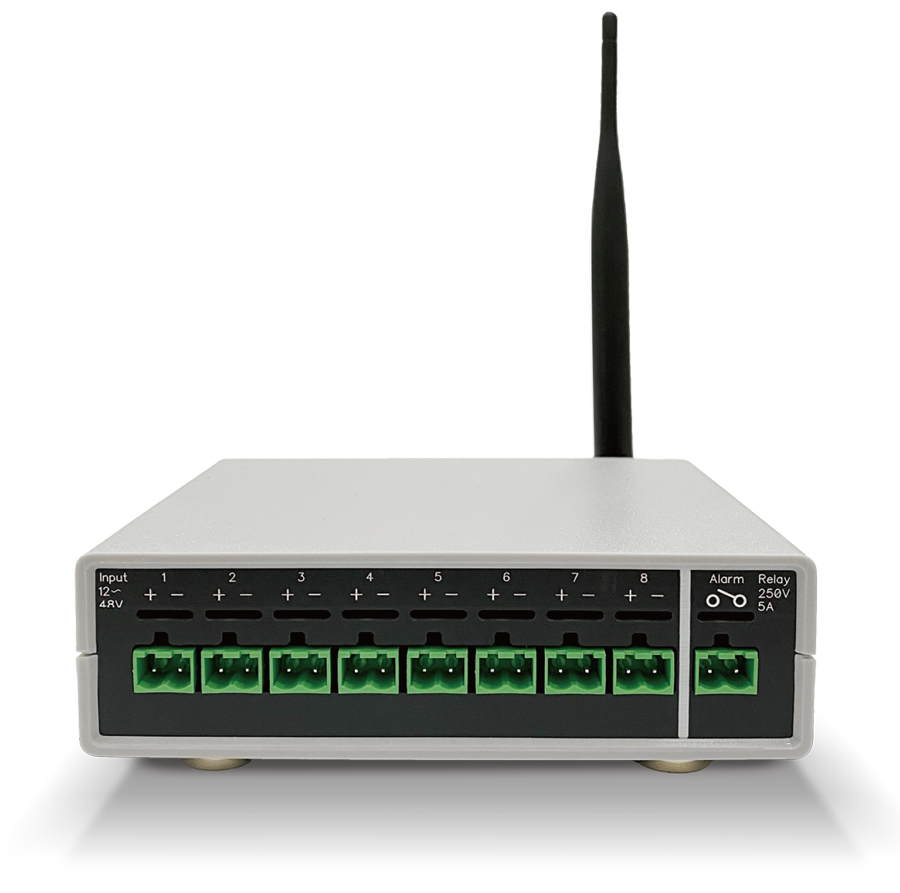

LRX 01 Slave
Protocols
LoRa
Center frequency range
923MHz
Antenna
Built-in or SMA output
Power Input
Voltage Range
8 - 28V
Input Current
1A max.
Trigger Input
Ports
8
Input Low Voltage
1V max. or open
Input High Voltage
22V min. (maximum 28V)
Input Current
3mA typ.
Relay Output.
Ports
1 for WiFi disconnect alarm
Contact Type
SPDT
Rated Voltage
30VDC, 250VAC
Rated Current
10A
Other interface
LEDx1
Blink 0.2s ON with 1s period when LRX-01-S synchronize to LRX-01-M.
Button
For setting the LRX-01-S to search the LRX-01-M.
